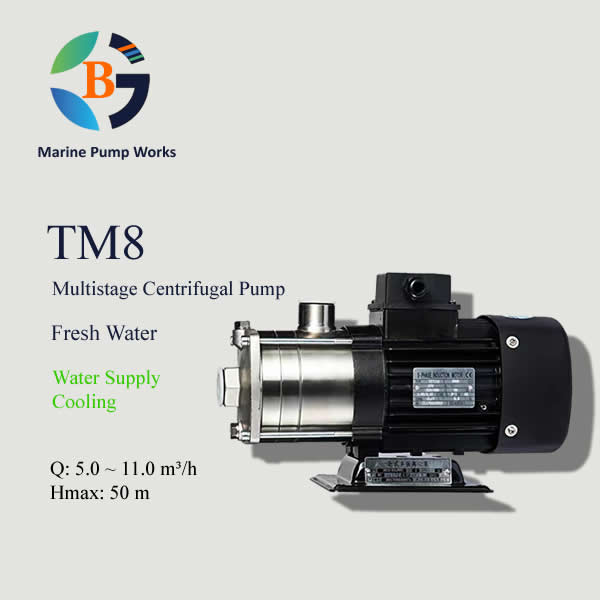

TM8
Type: Horizontal Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Water Supply/ Cooling
Q(@50Hz, 2900r/min): 5 ~ 11 m³/h
Hmax(@50Hz, 2900r/min): 50 m
Inlet and Outlet Size: Rp1-1/2
Description
TM8 horizontal multistage pump is centrifugal pump with flow range Q: 5~11m³/h and max. head 56m @ 2900rpm, 50Hz. It’s designed to transfer fresh water and widely used for water supply and cooling.
1. Model Key
TM8-40
- TM – Industrial pump code
- 8 – Pump rated capacity is 8 m³/h
- 40 – Number of impellers is 4
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Inlet | HT200/SUS304 |
| 3 | Pull Rod | SUS304 |
| 4 | Impeller | SUS304 |
| 5 | Diffuser | SUS304 |
| 6 | Pump Outlet | HT200/SUS304 |
| 7 | Motor Base | AISI1015 |
| 8 | Mechanical Seal | Assembly |
| 9 | Shaft | SUS304 |
| 10 | Support Diffuser | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| (Kw) | (m³/h) | ||||||||
| TM8-20 | 0.75 | H (m) | 19.5 | 19 | 18.S | 17.5 | 16.5 | l | 13.5 |
| TM8-30 | 1.1 | 29 | 28.5 | 27.5 | 26.5 | 24 | 22 | 20 | |
| TM8-40 | 1.5 | 39 | 38 | 36.5 | 35 | 32 | 29.5 | 26 | |
| TM8-50 | 2.2 | 50.5 | 49 | 46.5 | 44 | 41 | 38 | 33 |

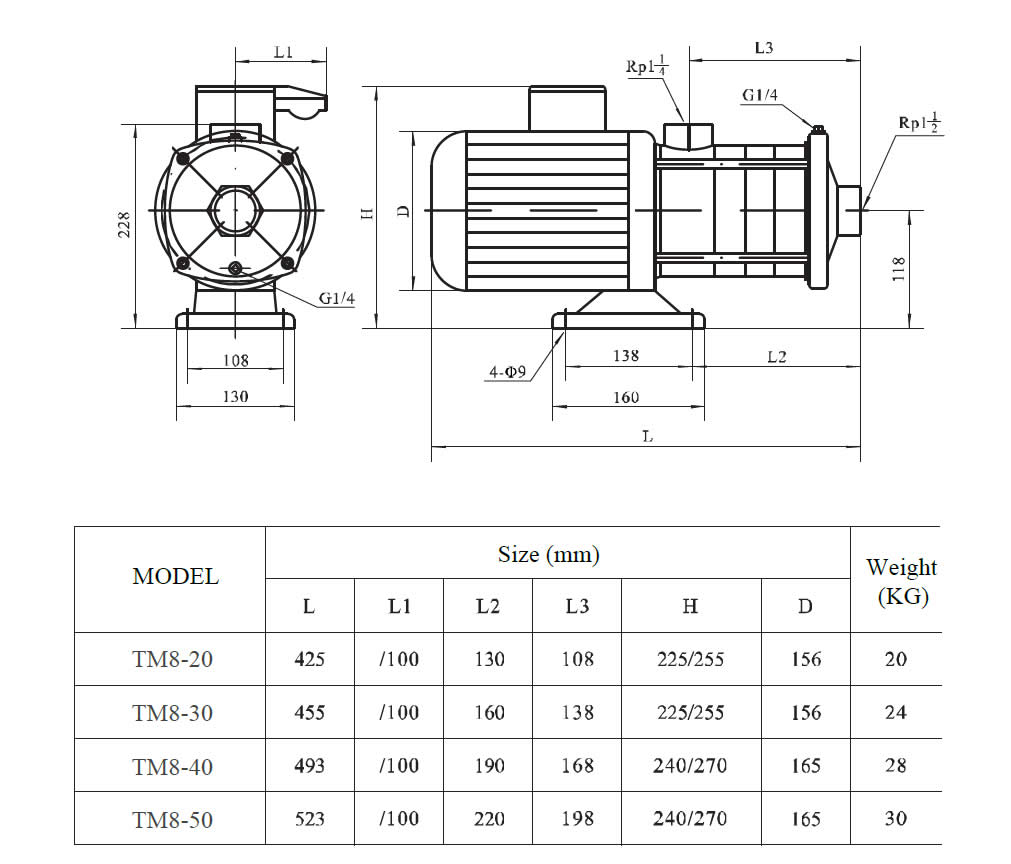

4. Dimensions and Weight:
@ 50Hz, 2900r/min
