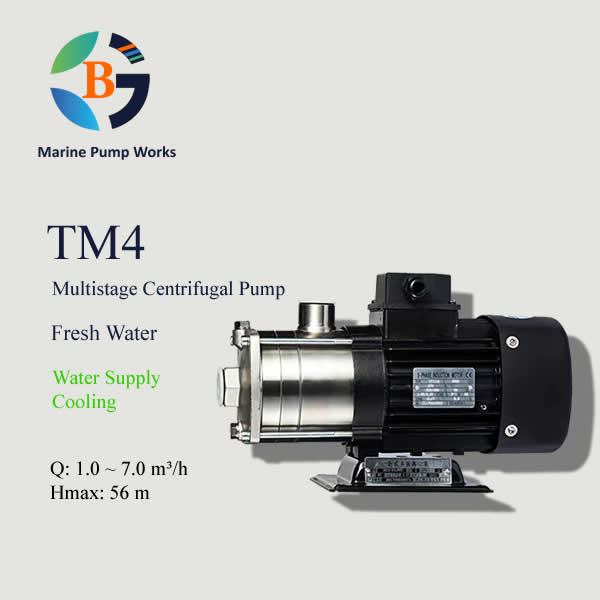

TM4
Type: Horizontal Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Water Supply/ Cooling
Q(@50Hz, 2900r/min): 1.0 ~ 7.0 m³/h
Hmax(@50Hz, 2900r/min): 56 m
Inlet and Outlet Size: Rp1-1/4
Description
TM4 horizontal multistage pump is centrifugal pump with flow range Q: 1.0~7.0m³/h and max. head 56m @ 2900rpm, 50Hz. It’s designed to transfer fresh water and widely used for water supply and cooling.
1. Model Key
TM4-30
- TM – Industrial pump code
- 4 – Pump rated capacity is 4 m³/h
- 30 – Number of impellers is 3
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Inlet | HT200/SUS304 |
| 3 | Pull Rod | SUS304 |
| 4 | Impeller | SUS304 |
| 5 | Diffuser | SUS304 |
| 6 | Pump Outlet | HT200/SUS304 |
| 7 | Motor Base | AISI1015 |
| 8 | Mechanical Seal | Assembly |
| 9 | Shaft | SUS304 |
| 10 | Support Diffuser | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| (Kw) | (m³/h) | ||||||||
| TD4-20 | 0.37 | H (m) | 19 | 18 | 17 | 15 | 12.5 | 10 | 1.5 |
| TD4-30 | 0.55 | 28 | 27 | 26 | 23.S | 20.5 | 17 | 13 | |
| TD4-40 | 0.75 | 37.5 | 36 | 34 | 31 | 27 | 23 | 19 | |
| TD4-50 | 1.1 | 47 | 45 | 42.5 | 39 | 34 | 29 | 23 | |
| TD4-60 | 1.1 | 56 | 54 | Sl | 47 | 41.5 | 35.5 | 28 |

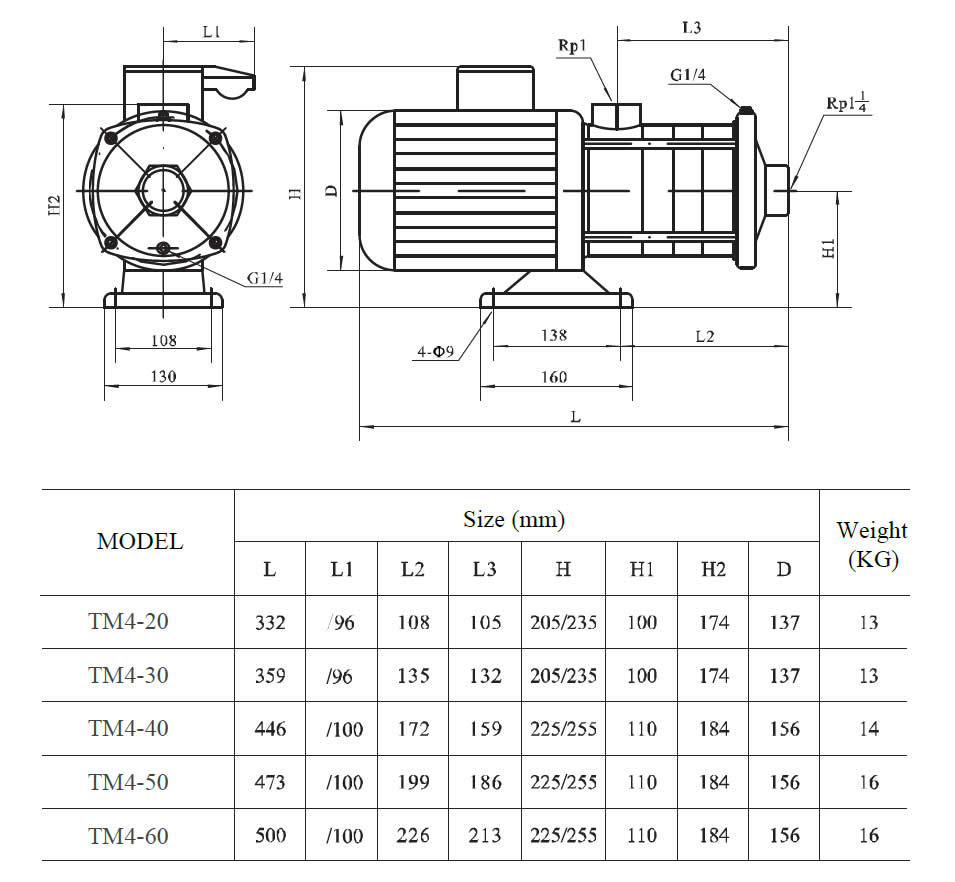

4. Dimensions and Weight:
@ 50Hz, 2900r/min
