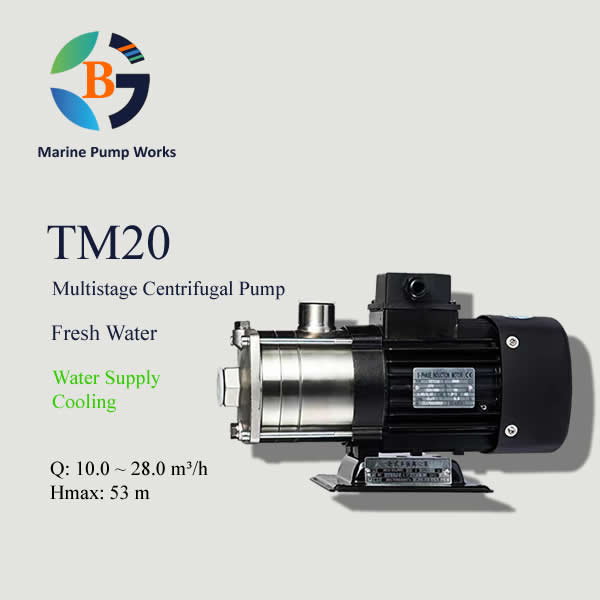

TM20
Type: Horizontal Multistage Centrifugal Pump
Stage: Multistage
Fluid: Fresh Water
Application: Water Supply/ Cooling
Q(@50Hz, 2900r/min): 10 ~ 28 m³/h
Hmax(@50Hz, 2900r/min): 53 m
Inlet and Outlet Size: Rp2
Description
TM20 horizontal multistage pump is centrifugal pump with flow range Q: 10~28m³/h and max. head 60m @ 2900rpm, 50Hz. It’s designed to transfer fresh water and widely used for water supply and cooling.
1. Model Key
TM20-30
- TM – Industrial pump code
- 20 – Pump rated capacity is 20 m³/h
- 30 – Number of impellers is 3
2. Construction and Material:
| Part No. | Name | Material |
| 1 | Motor | / |
| 2 | Pump Inlet | HT200/SUS304 |
| 3 | Pull Rod | SUS304 |
| 4 | Impeller | SUS304 |
| 5 | Diffuser | SUS304 |
| 6 | Pump Outlet | HT200/SUS304 |
| 7 | Motor Base | AISI1015 |
| 8 | Mechanical Seal | Assembly |
| 9 | Shaft | SUS304 |
| 10 | Support Diffuser | SUS304 |
3. Technical Date:
@ 50Hz, 2900r/min
| Model | Motor | Q | 10 | 14 | 16 | 18 | 20 | 22 | 24 | 28 |
| (Kw) | (m³/h) | |||||||||
| TM20-20 | 2.2 | H (m) | 27 | 25.5 | 25 | 23.5 | 22 | 20.5 | 18.5 | 14.5 |
| TM20-30 | 4 | 39.5 | 38 | 37.5 | 35.5 | 34 | 31 | 29 | 23 | |
| TM20-40 | 4.4 | 53 | 51 | 50 | 48.5 | 46.5 | 43 | 40 | 32.5 |
4. Dimensions and Weight:
@ 50Hz, 2900r/min
